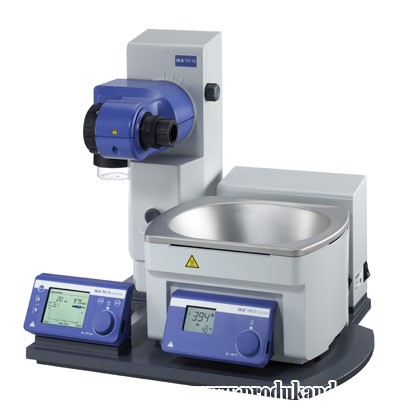

FLEX-ability with the new IKA RV 10 FLEX Packages

The IKA FLEX Packages enable the customer who requires speciality glassware the FLEX-ability of customizing their glassware setup for their specific application.

The RV 10 control FLEX Package includes the following components:
RV 10 control drive, HB 10 control heating bath, RV 10.70 vapor tube NS 29/ 32, clamps for glassware, woulf bottle

New: Now RV 10.4002 Magnetic Valve included in delivery

Cooling surface 0 cm2
Motor principle DC
Speed range 20 – 280 rpm
Reversible direction of rotation yes
Lift Motor
Stroke 140 mm
Heating temperature range room temp. – 180 ° C
Heat output 1300 W
Heat control accuracy 1 ± K
Bath volume max. 3 l
Vacuum controller integrated yes
Measurement accuracy + / - 2 mbar
Vacuum adjustment range 1050 – 1 mbar
Vacuum measurement range 1050 – 1 mbar
Timer yes
Dimensions ( W x H x D) 500 x 430 x 410 mm
Weight 21.5 kg
Permissible ambient temperature 5 – 40 ° C
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
Voltage 220 – 240 / 100 – 120 / 100 – 115 V
Frequency 50/ 60 Hz
Power input 1400 W
