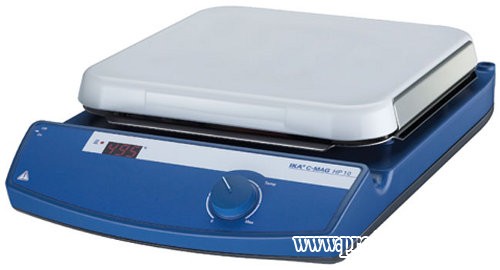

New hotplate made of ceramic glass which offers excellent chemical resistance.

Fixed safety circuit of 550 ° C
Hot Top indicator > > hot surface warning to prevent burns!
Exact temperature setting via digital display ( LED)
Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
Digital error code display
Elevated control panel for protection against leaking liquids

Number of heating points 1
Heat output 1500 W
Heating temperature range 50 – 500 ° C
Heat control LED
Heat control accuracy 10 ± K
Connection for ext. temperature sensor ETS-D5
Control accuracy with sensor 3 ± K
Temperature constancy in medium 3 ± K
Heating rate ( 1 l H2O in H15) 5 K/ min
Set-up plate material ceramic
Set-up plate dimensions 260 x 260 mm
Dimensions ( W x H x D) 300 x 105 x 415 mm
Weight 6 kg
Permissible ambient temperature 5 – 40 ° C
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 21
Voltage 230 / 120 / 100 V
Frequency 50/ 60 Hz
Power input 1505 W
